Main product: All kinds of jacquard cap and scarf, like football club scarf, advertising scarf, jacquard fashion cap, scarf, muffler .... And all kinds of fashiontube knitting products.
Product features: Many designs, more color option, soft, comfortable, elasticity.

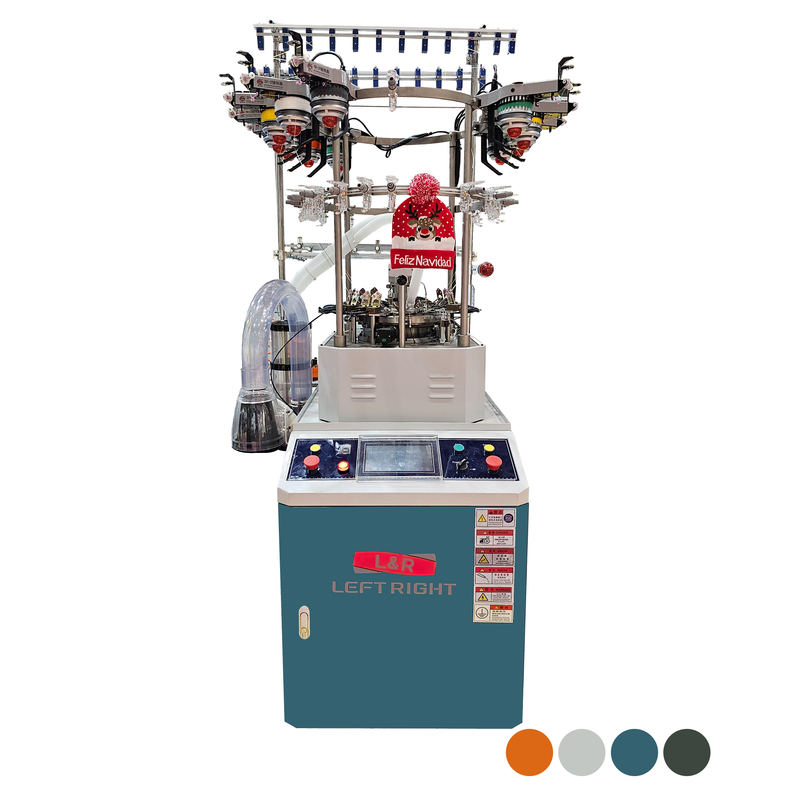

High Speed Full Computer Contrlo Single Jacquard Knitting Machine | |
| Name | Data Description |
| Cylinder size | 9 inches |
| Needles | 160-480n |
| R.P.M | 60-120 according the material |
| Output mode | Independent Suction system or pull by the central exhaust system |
| Feeder | Double system, 6×4 feeders, Automatic conversion |
| LCD | 7inches touch LCD screen |
| Actuator | 10 ps Eight knife high-speed magnetic needle selection |
| Density control | By 2 pcs Independent stepper motors |
| Yarn delivery device | Thread break Stop Or Yarn Store Device |
| Alarm stop | Thread broke stop, leakage stop, Low oil pressure stop, needle broke stop |
| Automatic oil | Automatic atomizing oil system, the frequency can control by computer |
| Motor | Permanent magnet synchronous motor or inverter control variable speed Gear motor |
| Voltage | 220/38OV |
| Square | 1600mm×1100mm×2800mm |
